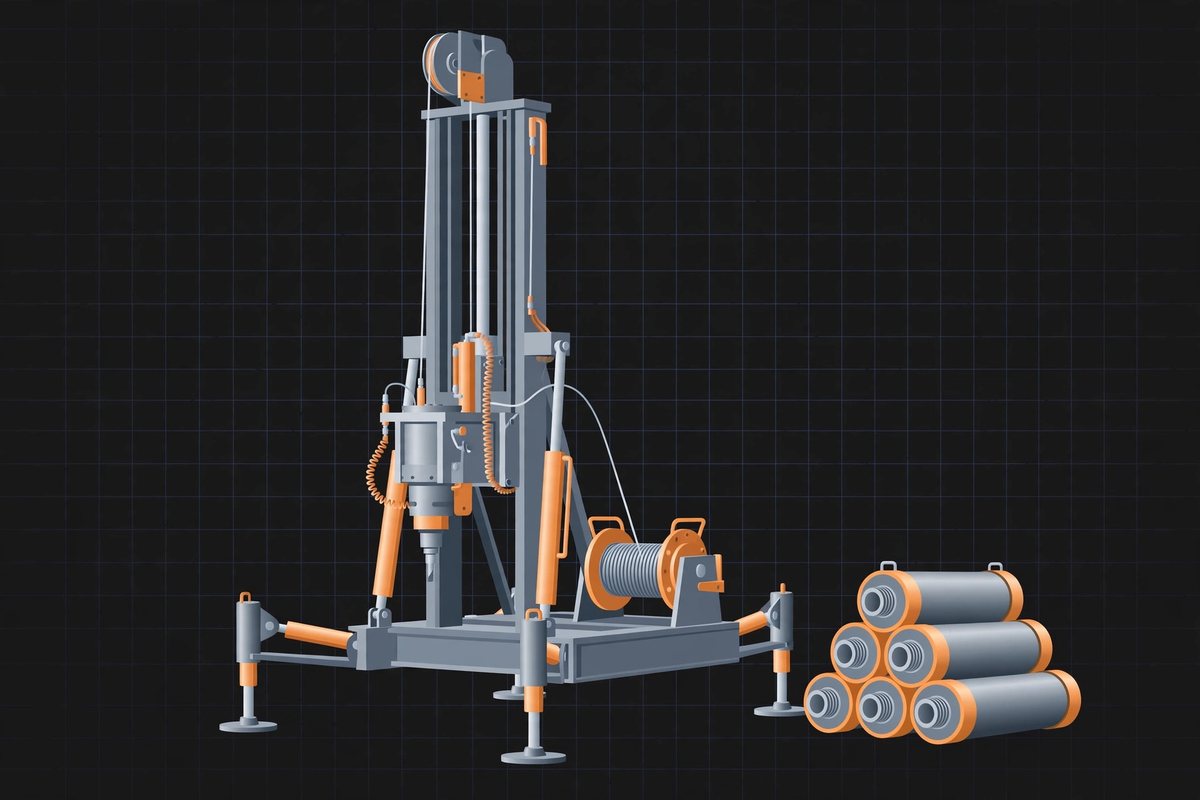

TerroCore ZY-40
A modular wireline core drill for exploration programs in roadless terrain. Breaks down into man-portable loads, drills deeper than the ZY-25 for follow-up holes on promising targets.
TerroCore ZY-40 specs
| Drilling depth | Up to 40 m (131 ft) |
|---|---|
| Core diameter | Φ16–32 mm |
| Feed | Hydraulic feed, wireline winch |
| Power | Gasoline or electric drive options |
| Portability | Breaks down into man-portable loads; heaviest module about 55 kg |
| Transport | Pack, ATV or helicopter sling loads |
| Kit | Rods, bits, core barrels and water pump available as a kit |
Specifications are as supplied by the manufacturer. Actual performance depends on geology, drilling method and site conditions.
Questions
How is the ZY-40 different from the ZY-25?
It drills deeper (40 m class versus 25 m) and takes larger core, while staying modular and man-portable for sites without road access.
How does it reach remote sites?
The rig breaks down into loads one or two people can carry, and moves by pack trail, ATV or helicopter.
What core size does it cut?
Core from Φ16 to 32 mm, with wireline retrieval so rods stay in the hole between runs.
What comes in the kit?
Rods, bits, core barrels and a water pump can be quoted as a complete field kit, matched to your program.
How is it priced?
Quoted per order, including shipping to your location.
Built for
Exploration juniors
Follow-up drilling on targets a truck rig cannot reach.
Geological surveys
Mapping and sampling programs in mountainous or forested terrain.
Universities & research
Field schools and research coring with a rig students can move by hand.
Also see the TerroCore ZY-25 and BlastMaster B80, or all equipment.
Need a quote?
Tell us your site, quantity and destination. We quote the TerroCore ZY-40 with shipping.
