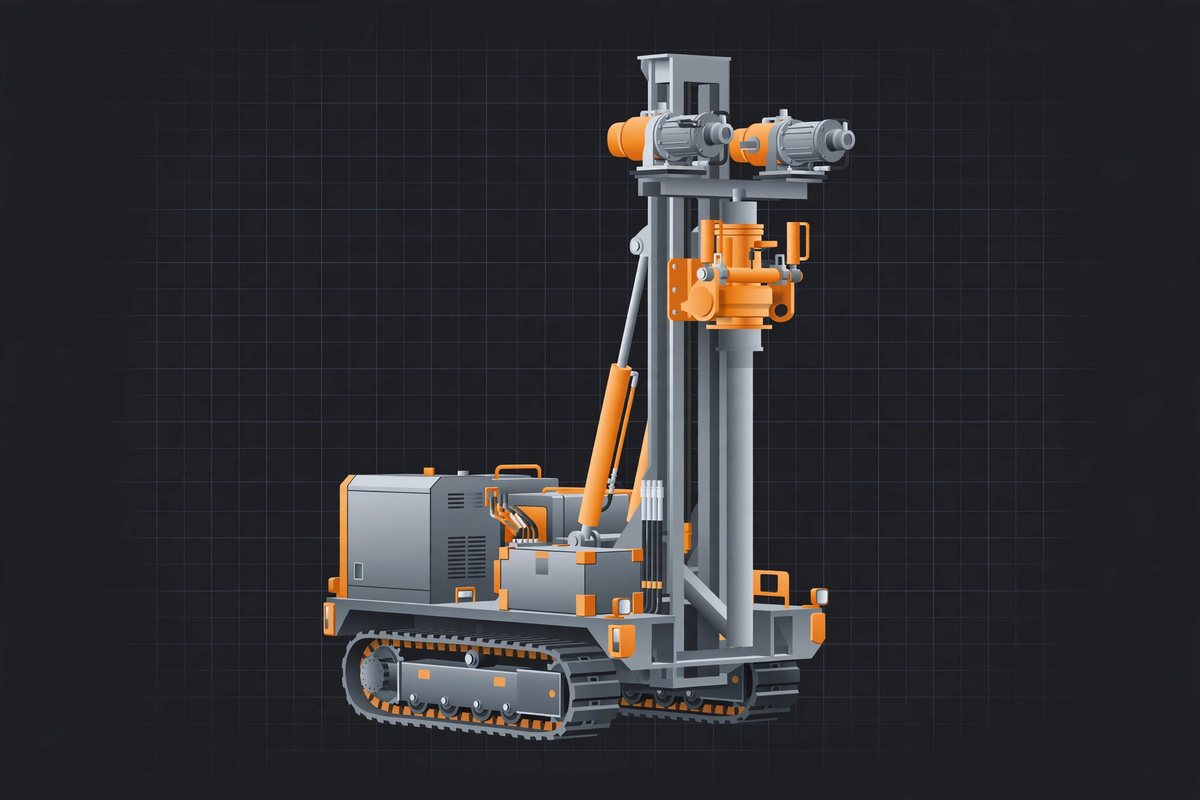

GeoTherm G260
A double-head rotary rig sized for ground-source heat pump boreholes. Drills, cases, sets the U-loop and grouts in one pass pattern, sized for residential streets and commercial borefields alike.
GeoTherm G260 specs
| Drilling depth | Up to 850 ft (260 m) |
|---|---|
| Hole diameter | 4.5–6.5 in, typical geothermal |
| Drive | Double rotary head (casing + inner string) |
| Carrier | Crawler (tracked), narrow-access width |
| Drilling methods | Mud rotary and DTH |
| Loop work | Sets U-loops; grout by tremie |
| Power | Diesel hydraulic |
| Site footprint | Compact rig for residential lots and retrofit sites |
Specifications are as supplied by the manufacturer. Actual performance depends on geology, drilling method and site conditions.
Questions
How deep does a geothermal borehole need to be?
Most ground-source loops run 200–600 ft depending on load and geology. The G260's 850 ft (260 m) class covers residential and commercial borefields with margin.
Why a double-head rig?
The double rotary head advances casing and the inner string together, which keeps unstable ground open and speeds up loop installation.
Does it install the loop too?
Yes. It sets the U-loop after drilling, and grout is placed by tremie before the rig moves to the next bore.
Can it work on residential streets?
Yes. The crawler carrier and compact footprint are sized for lots and retrofit sites, not just open fields.
How is it priced?
Quoted per order, including shipping to your location.
Built for
Geothermal / HVAC installers
Boreholes for ground-source heat pump systems, drilled back to back.
Energy contractors
District and campus borefields delivered on a program schedule.
Developers
Renewable heating for new housing and commercial builds.
Also see the Aquilon 450C and Aquilon 300E, or all equipment.
Need a quote?
Tell us your site, quantity and destination. We quote the GeoTherm G260 with shipping.
